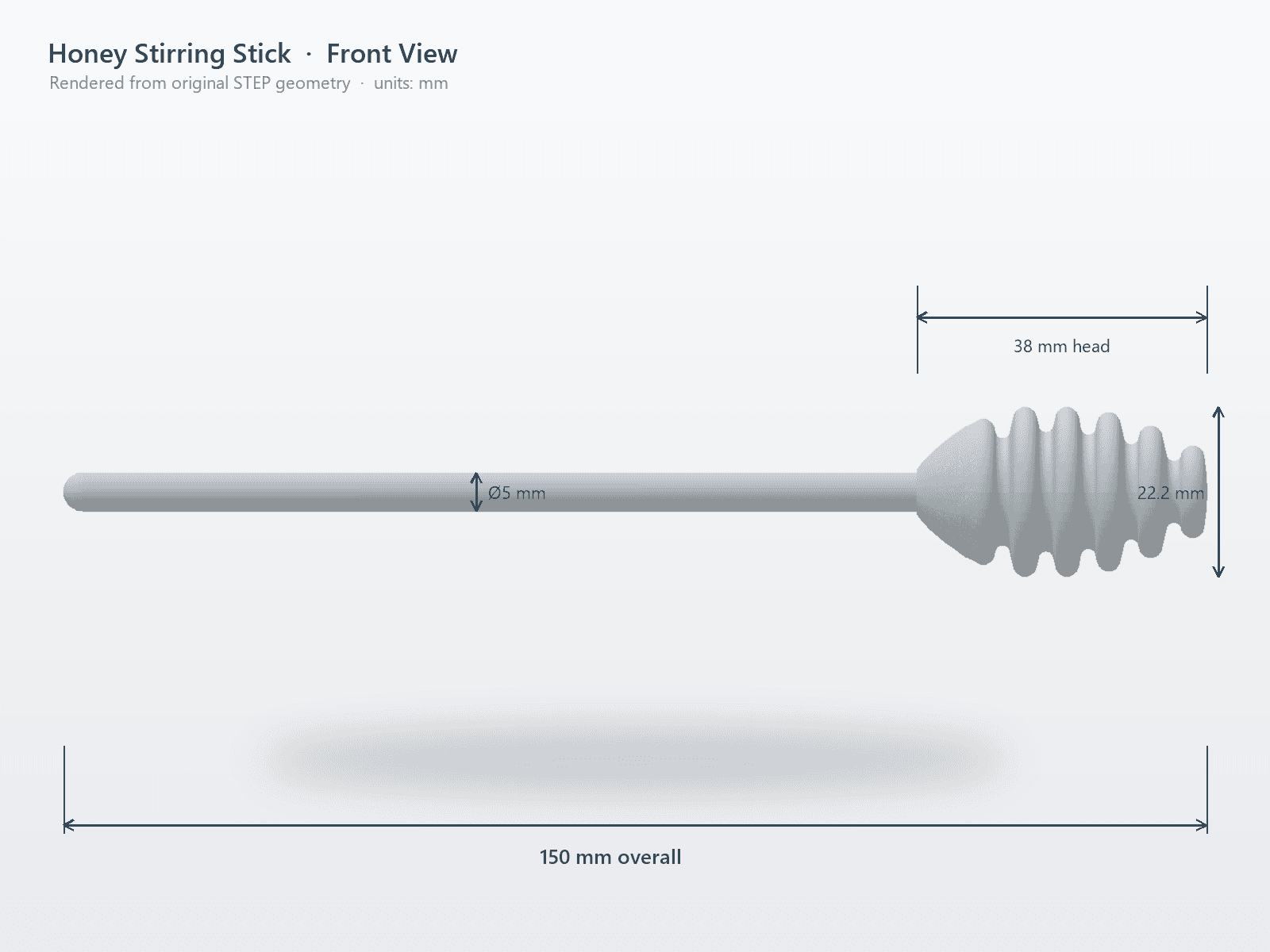

Dimensioned CAD
- Overall length
- 150 mm
- Shaft
- Ø5 mm
- Head length
- 38 mm
- Head diameter
- 22.2 mm
Project snapshot
The current record, without future-stage assumptions.
A custom titanium product development project currently under CAD review, using supplied STEP geometry to evaluate the route toward prototype decisions.
- Project type
- Custom Titanium Product
- Current stage
- CAD Review
- Input
- STEP / 3D Reference
- Prototype
- Pending
- Sample
- Pending
- Production
- Not Confirmed
Development timeline
One visible current stage. Future work remains pending.
Status words accompany every marker so the sequence does not rely on color alone.
- CompleteRequirement
Dimensioned STEP / 3D reference received as the development input.
- CurrentCAD Review
Geometry and dimensions are currently under engineering review.
- PendingPrototype
Prototype requirements and route remain to be confirmed.
- Not startedValidation
Physical evaluation has not started.
- Not startedProduction
Production is not confirmed.

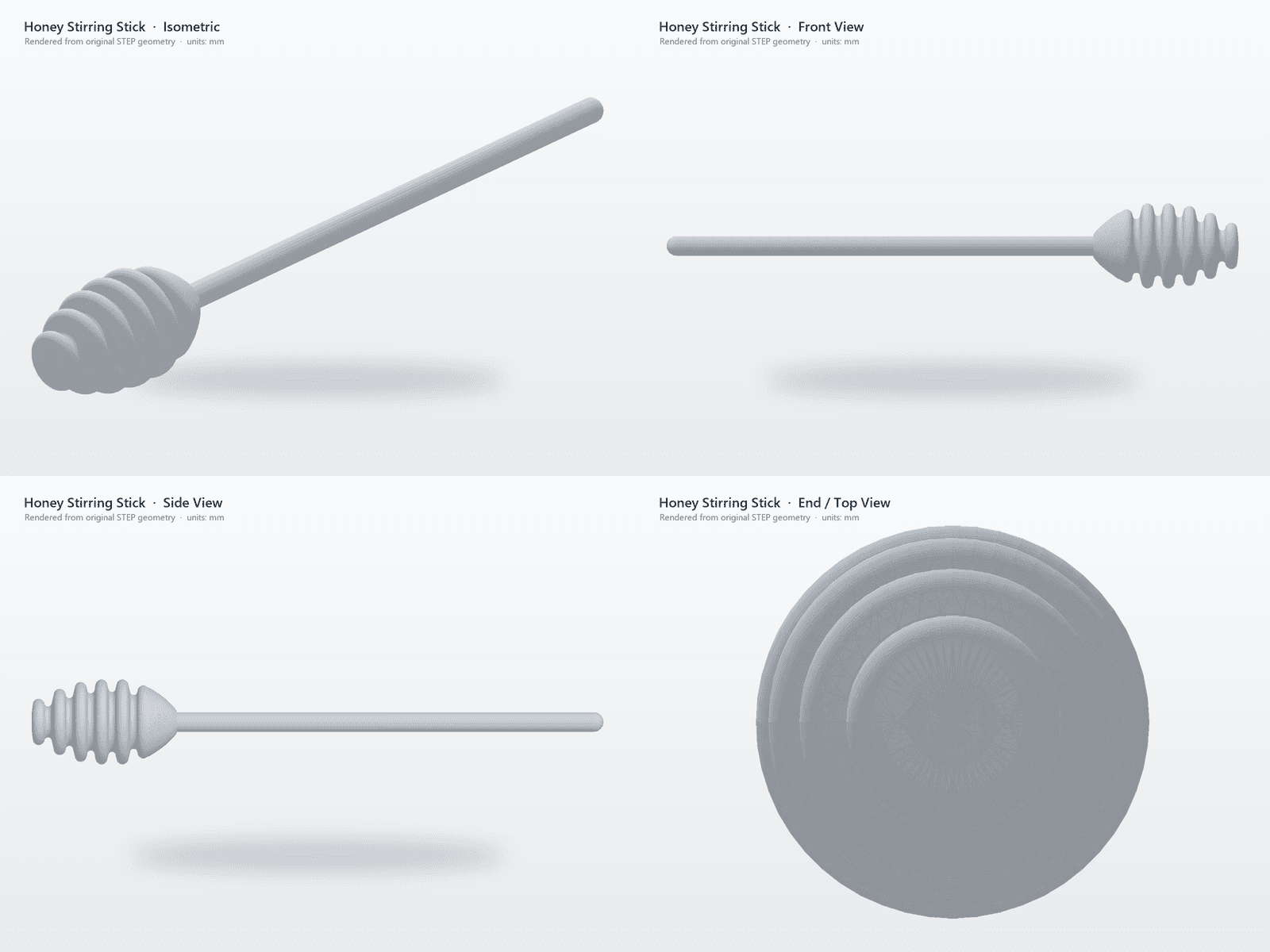

Current CAD review
Geometry reviewed from more than one view.
The available STEP-derived renders record the current geometry and dimensions. They are development evidence, not photographs of a finished prototype.
Design / structure notes
Questions being carried into engineering review.
- Review the supplied product geometry and recorded dimensions.
- Assess the connection and joint concept without assuming an engineering conclusion.
- Identify areas that require clarification or revision before physical prototyping.
- Define prototype requirements only after the CAD review is complete.
Next steps
What must happen before production can be considered.
- 01Complete the current CAD and manufacturability review.
- 02Confirm material, finish, and prototype requirements.
- 03Decide whether to proceed to a physical prototype.
- 04Define validation criteria before any production decision.
Current design record
Known dimensions and open decisions.
Only dimensions visible in the supplied CAD evidence are listed. Material, finish, performance, sample availability, and production readiness remain to be confirmed.
Development evidence
- CAD source
- STEP
- Prototype
- Pending
- Sample
- No / Pending
- Production
- Not Confirmed
Engineering decisions
- Material
- To confirm
- Finish
- To confirm
- Manufacturability
- Under review
- Validation
- Not started
What this project demonstrates
A development process, not a finished-success claim.
01Accepting 3D and STEP inputs for a non-standard titanium concept.
02Reviewing geometry, dimensions, structure, and manufacturing questions before prototyping.
03Separating CAD review, prototype, validation, and production into distinct evidence gates.
